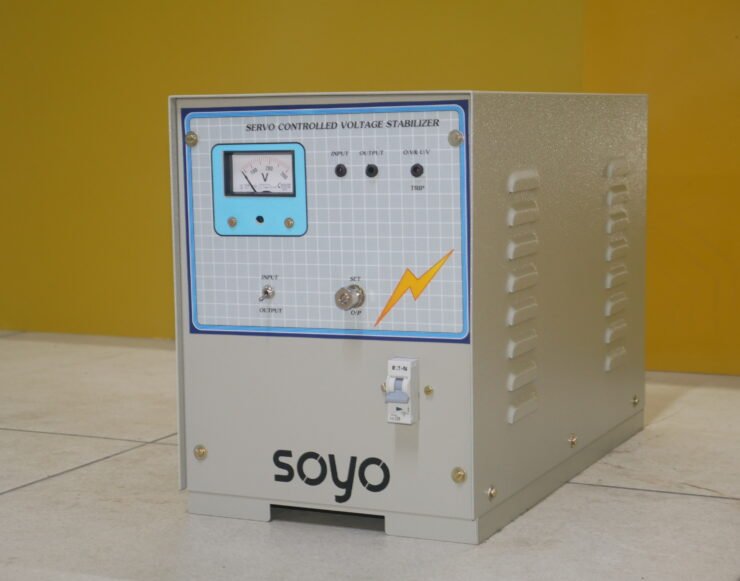

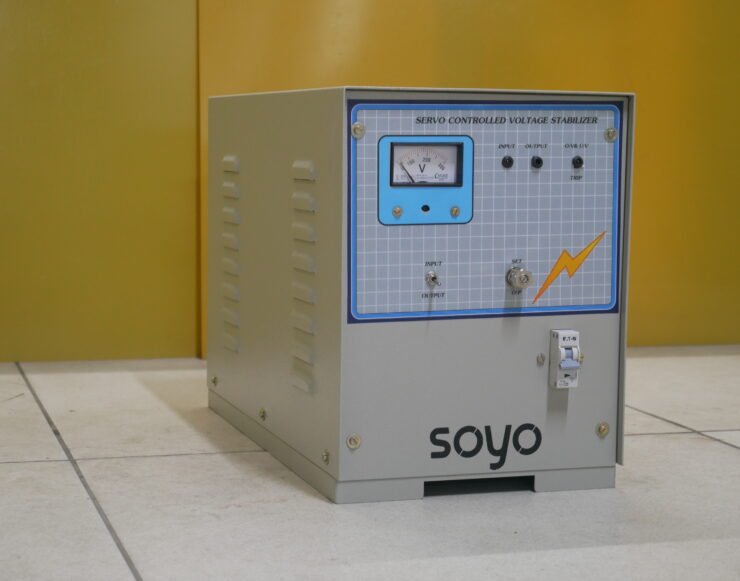

VOLTAGE STABILIZER SERVO CONTROLLED
Key Features
Output voltage sensing for voltage correction & for u / v & o / v trip
Over voltage & under voltage trip by means of contractor / relays
Voltmeter with selector switch to see input & output voltages
Adjustment - output voltage adjustment of +/- 5v / phase will be provided by means of potentiometer on front plate
By pass facilities
Ammeter - to see load currents
Digital voltmeter & digital ammeter
Advantage
Very sleek, compact desk – top models
Noiseless operation
Built – in analog meter to monitor input & output voltages by means of selector switch
Audio and visual indications for over / under voltage cut-off
Short circuit & overload protection by means of MCB / FUSE / MCCB is provided
Controls - auto / manual incase of auto mode failure you can set output voltage through manual mode
Generator compatible circuit
Time delay circuit - output power on with specified time delay
RFI filter & spike suppressor is provided
Technical Specification
| Parameter | Specification |
|---|---|
| Models | 1 KVA to 50 KVA |
| Input Voltage Range | 170V – 270V |
| Input Supply Frequency | 45Hz – 55Hz |
| Output Voltage | 230V – 240V ±1% |
| Voltage Regulation | ±1% |
| Rate of Correction | Usually 25V/Sec/Phase (Depends on Rating) |
| Efficiency | >95% |
| Waveform Distortion | Nil |
| Effect of Load Power Factor | Nil |
| Ambient Temperature | 0°C - 50°C Max |
| Dimension (L x W x H) in mm | 450 x 240 x 320 |
| Under Voltage Trip Setting | 170V |
| Type | Single Phase |
