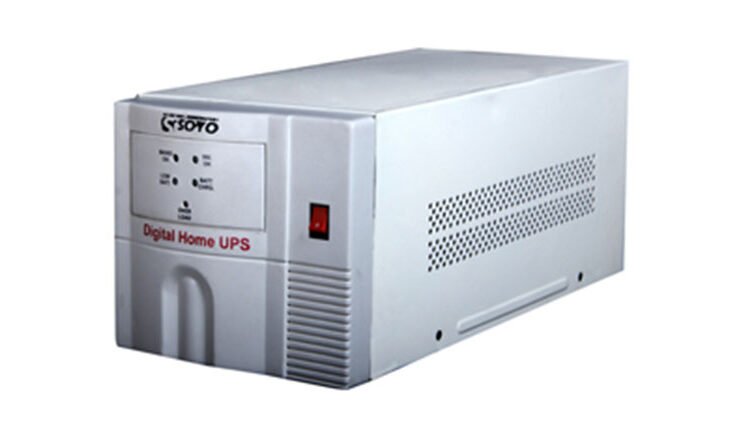

DIGITAL INVERTER
INTRODUCTION
Power inverter is a device that converts electrical power from DC form to AC form using electronic circuit. It’s typical application is to convert battery voltage into conventional household AC voltage allowing you to use electronic devices when an AC power is not available. This set of inverter produces sine wave at the output and gives number of advantages as well as features.
Key Features
Overload / Surge Protection
Wide Input Voltage range
Short Circuit protection
Solar Compatibility
Highly Efficient MOSFET Technology
Over Temperature Protection
Complete battery protection against deep discharge and overcharge
Advantages
Fully Automatic Functions
Smooth and Noiseless operation
Gives Clean Power like Utility-Supplied Electricity
Very Low Harmonic distortion
| Sr. No. | Parameter | Specification |
|---|---|---|
| 1 | AC Input | |
| Rating | 650VA / 800 VA / 850 VA | |
| Input Voltage | 230V ±10% Single Phase Input | |
| Frequency | 50 Hz | |
| 2 | DC Voltage | |
| Battery Voltage | 12 VDC | |
| Charging Time | 5 Hours for 40% of Full Capacity | |
| Charging Type | CV Silicon Controlled Rectifier Type | |
| 3 | Inverter | |
| Technology | MOSFET | |
| Output Voltage | 260V, Single Phase | |
| Voltage Regulation | ±11.53% (at no load) | |
| Waveform | Square Wave | |
| Harmonic Distortion | Less Than 3% | |
| Inverter Efficiency | >85% | |
| Power Factor | 0.8 | |
| Audible Noise | Less Than 50 dB at 1 Meter | |
| 4 | General | |
| Dimensions (L x W x H) in mm | 331 x 181 x 153 | |
| Operating Temperature | 0℃ to 50℃ | |
| 5 | Protections | Output Overload & Short Circuit, Output Under & Overvoltage, Battery Low |
| 6 | Indications & Alarms | |
| Mains On | Indication | |
| Inverter On | Indication | |
| Battery Low | Indication | |
| Battery Charging | Indication | |
| Output Overload | Indication |
